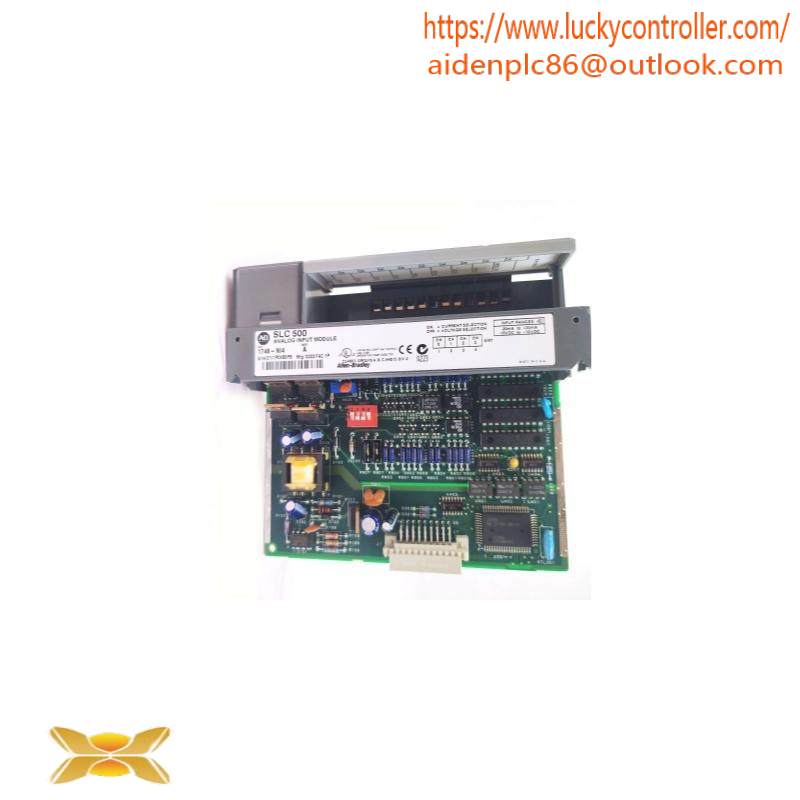

AB 1746-NI4A – Allen Bradley High-Resolution Analog Input Module

Type:Analog Input Module

Model Number:1746-NI4A

Manufacturer:Allen Bradley

Channels:4 (Input)

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    Unmatched Precision: The AB 1746-NI4A excels in measuring high-resolution analog signals, making it an indispensable component for applications requiring extreme accuracy and reliability.

    Robust Construction: Designed for industrial environments, this module is built to withstand harsh conditions without compromising performance or longevity.

    Efficient Communication: Integrated with advanced communication protocols, ensuring smooth data transfer and control within your automation system.

    Scalable Design: With support for multiple I/O configurations, the 1746-NI4A offers flexibility in system integration, accommodating various operational needs.

    Ease of Installation: Featuring a modular design, installation is streamlined and requires minimal downtime, allowing for quick setup and maintenance.
