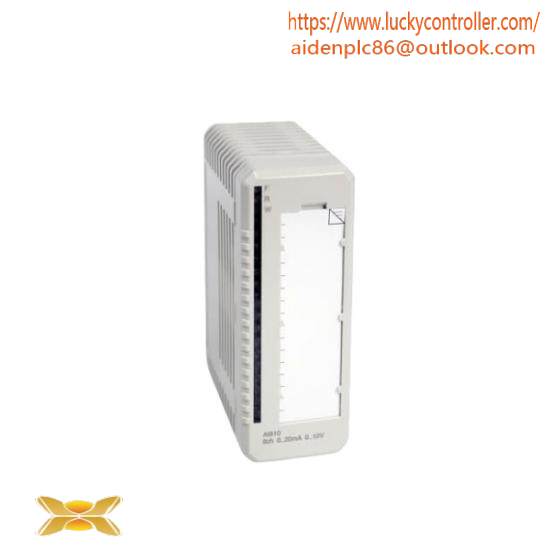

ABB 3BSE008516R1 AI810: Industrial Analog Input Module for Scalable Automation

Product Type:Analog Input Module

Model Number:3BSE008516R1

Designation:AI810

Input Channels:1×8

Signal Types Supported:4…20mA, 0..10V

Resolution:12Bit

Termination Options:Single Ended

Accuracy:0.1%

Isolation Rating:Rated

Voltage Rating:50V

Custom Processing:Yes

Material Coding:MTBD-AI810

Operating Voltage:220 (V)

Output Frequency:50 (kHz)

Certification:3BSE008516R1 AI810

Series:3BSE008516R1 AI810

Dimension (H x W x D):Specific dimensions for optimal fit

Weight:Specific weight for portability and handling

    The ABB 3BSE008516R1 AI810 is engineered for unparalleled versatility, making it an indispensable component in modern industrial automation environments. This analog input module is equipped with 8 channels capable of handling both current (4…20mA) and voltage (0…10V) signals with exceptional precision.

    Featuring a 12-bit resolution, this module ensures accurate data acquisition, crucial for complex control systems. Its 0.1% accuracy rating guarantees reliable signal processing, even under challenging conditions.

    With a robust isolation rating of 50V, the AI810 provides enhanced protection against electrical interference, ensuring stable operation in industrial settings. Its compact design allows for efficient space utilization, making it suitable for various equipment configurations.

    Designed with cost-effectiveness in mind, the ABB 3BSE008516R1 AI810 offers unparalleled scalability and flexibility. It seamlessly integrates with the AC500-eCo series, providing a cost-effective solution for industrial automation projects of all sizes.

    For optimal performance, we recommend using termination units such as TU810, TU812, TU814, TU830, TU835, or TU838 to connect the AI810 module. These accessories enhance signal integrity and ensure compatibility across different industrial applications.
