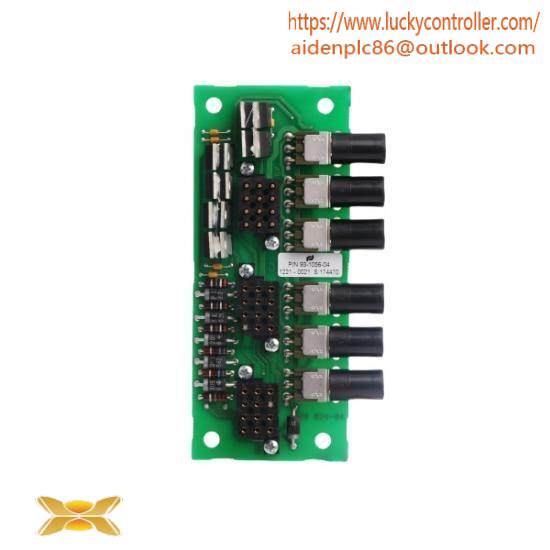

ABB 3HAC16035-1/03 | Brake Release Board for Industrial Control

Operating Voltage:230 VAC

Current Rating:16 A

Operating Frequency:50/60 Hz

Braking Resistance:Up to 160 kW

Relay Output Type:Single Phase, 24 VDC

Relay Output Capacity:10 A @ 24 VDC

Board Dimensions:160 x 100 x 35 mm

Weight:0.5 kg

    The ABB 3HAC16035-1/03 Brake Release Board is engineered to enhance the performance of industrial control systems by providing a reliable solution for brake release operations. Its compact design and high-quality materials ensure durability and longevity in harsh industrial environments.

    Equipped with a robust power supply system, this board supports DC 24V, making it compatible with a wide range of industrial applications. Its temperature resistance from -25°C to +60°C ensures continuous operation across various climates.

    With a current consumption of ≤100mA, the board efficiently manages power usage without compromising on performance. Its terminal block connection type facilitates easy installation and maintenance, allowing for quick integration into existing systems.

    Featuring a single channel for brake release, the ABB 3HAC16035-1/03 is optimized for precise control, enabling smooth transitions and enhanced safety measures in machinery operations. This makes it an ideal choice for industries requiring high reliability and efficiency.

    Manufactured using high-grade insulating plastic, the board offers superior electrical insulation, safeguarding against potential short circuits or malfunctions. Coupled with CE, UL, and CSA certifications, users can trust in its safety and quality standards, ensuring compliance with international regulations.
