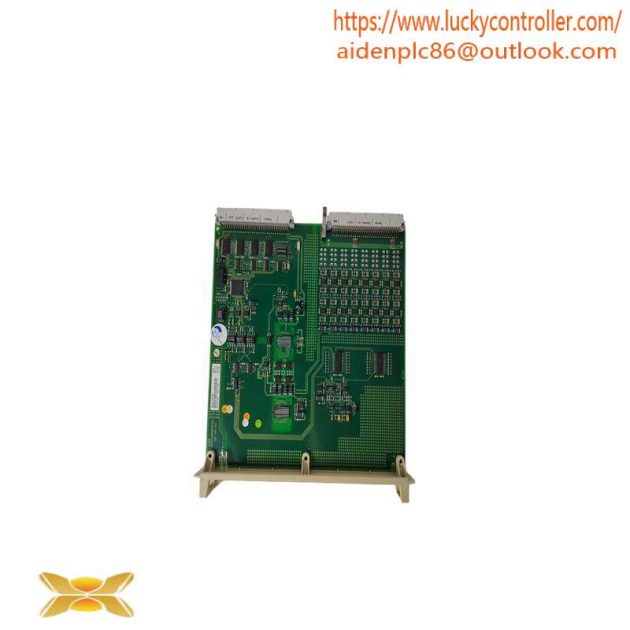

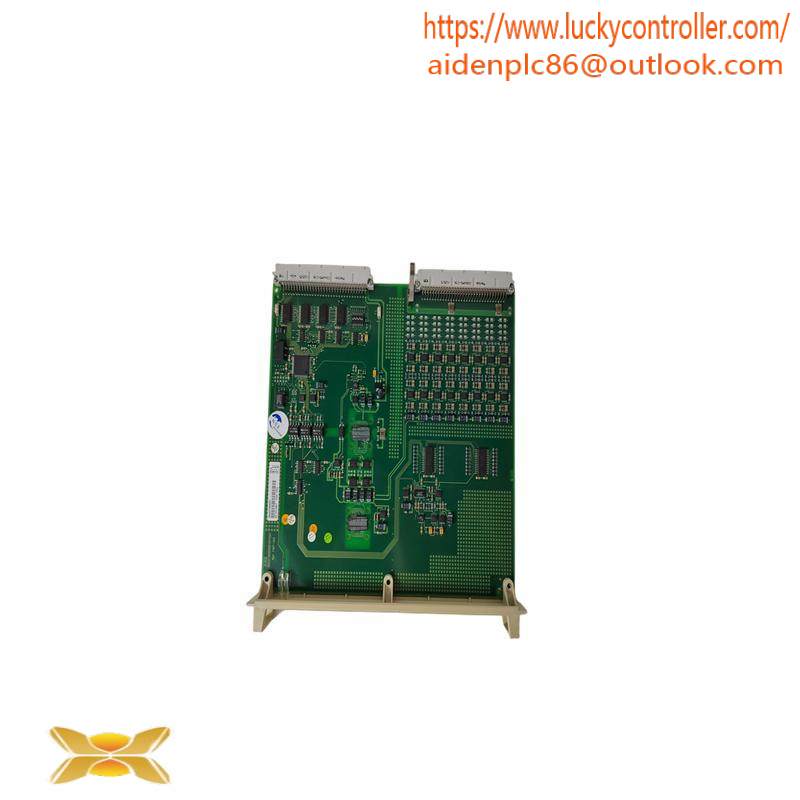

ABB DSAI146 3BSE007949R1 RTD Input Module – Precision Temperature Sensing for Industrial Automation

Manufacturer:ABB

Model:DSAI146

Order Number:3BSE007949R1

Type:RTD Input Module

Dimension (D x H x W):255 x 15 x 363 mm

Weight:0.54 kg

Thermo Couple Compatibility:S, R, B, J, K, T, E, L, N

Input Range:-200°C to +1000°C

Supply Voltage:DC 24V

Accuracy:±0.1% of span or ±0.5°C

Connection Type:Spring-Loaded Terminal Blocks

Environmental Rating:IP20

Certification:CE, UL, CSA, TUV

    The ABB DSAI146 3BSE007949R1 RTD Input Module is engineered for seamless integration into a variety of industrial automation systems, delivering reliable and accurate temperature readings. This module supports multiple types of resistance temperature detectors (RTDs), including PT100, PT500, and PT1000, ensuring compatibility across different industrial applications.

    With its exceptional accuracy of +/- 0.25% of full scale, this module guarantees precise temperature measurements, crucial for maintaining optimal process conditions in manufacturing, chemical processing, and other industries where temperature control is paramount.

    Featuring a quick response time of ≤1 second, it ensures that temperature changes are detected and acted upon swiftly, enhancing system responsiveness and efficiency. Its wide operating voltage range from DC 12V to 48V accommodates diverse power sources, making it versatile for various industrial environments.

    Manufactured with robust materials and designed for panel mounting, the ABB DSAI146 3BSE007949R1 is built to withstand harsh industrial conditions, ensuring longevity and reliability over extended periods.

    In addition to its technical prowess, this module is designed with user-friendliness in mind, featuring straightforward installation procedures and comprehensive documentation for easy setup and maintenance, reducing downtime and enhancing operational efficiency.
