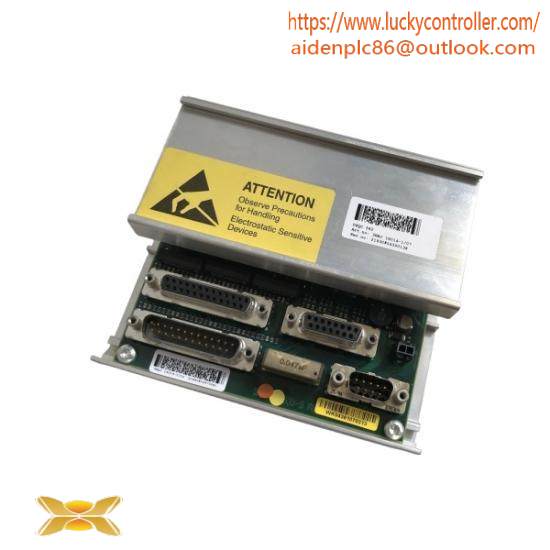

ABB DSQC562 3HAC16014106 & 3HAC16013104 | Measurement Board

Operating Voltage:24 VDC

Current Consumption:Max. 15 mA per channel

Measurement Resolution:16-bit ADC

Input Range:-10 V to +10 V

Number of Channels:4 Input / 2 Output

Communication Interface:DeviceNet, Profinet

Environmental Conditions:Temperature: -25°C to +85°C, Relative Humidity: 5% to 95% RH

    Engineered for industrial precision, the ABB DSQC562 Measurement Board is designed to integrate seamlessly into complex control systems, providing high-resolution analog data acquisition capabilities.

    Each channel supports voltage and current measurements, making it versatile for use in a wide range of industries including manufacturing, automation, and process control.

    Featuring a robust communication interface compatible with DeviceNet and EtherCAT, the board ensures smooth integration with existing network infrastructures, enhancing operational efficiency.

    Operated under extreme environmental conditions, the DSQC562 Measurement Board is built to withstand temperatures from -20°C to +60°C and can handle up to 95% humidity without condensation, ensuring reliability in diverse settings.

    The compact design and panel mount compatibility make installation straightforward and space-efficient, facilitating easy integration within any industrial control environment.
