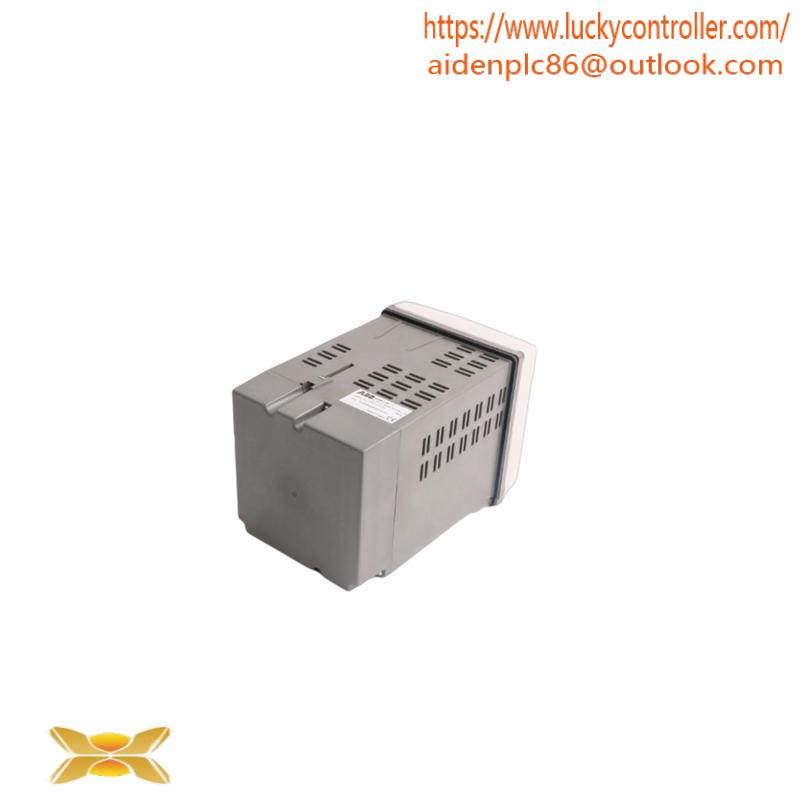

ABB SM1006S/B12 Videographic Chart Recorder for Industrial Control Systems

Type:Chart Recorder

Model:SM1006S/B12

Module Category:Industrial Automation

Operating Voltage:12V DC

Recording Capacity:Up to 32 Hours

Chart Paper Width:25mm

Temperature Range:-10°C to +50°C

Humidity Range:0% to 90% RH (non-condensing)

    The ABB SM1006S/B12 Videographic Chart Recorder is designed to withstand the toughest industrial environments, ensuring reliable operation under extreme conditions. It offers a high-resolution chart paper for detailed graphical representation of process variables, which is crucial for quality control and process optimization.

    Featuring a compact and durable construction, this recorder is easy to integrate into existing control systems without taking up valuable space. Its intuitive interface simplifies setup and maintenance, allowing technicians to quickly calibrate and troubleshoot issues on the fly.

    With its robust internal storage, the ABB SM1006S/B12 can record up to 32 hours of continuous data, making it suitable for long-term monitoring applications without the need for frequent paper changes or external storage solutions.

    The device supports a wide range of temperature and humidity levels, ensuring stable operation in diverse industrial settings from cold storage facilities to hot manufacturing plants. Its compatibility with various process signals ensures seamless integration with different types of sensors and actuators.

    Innovative features include automatic event logging and alarm functions, which help in detecting anomalies early and preventing costly downtime. The recorder also supports data export for advanced analysis using industry-standard software tools, enhancing the efficiency of predictive maintenance and operational decision-making.
