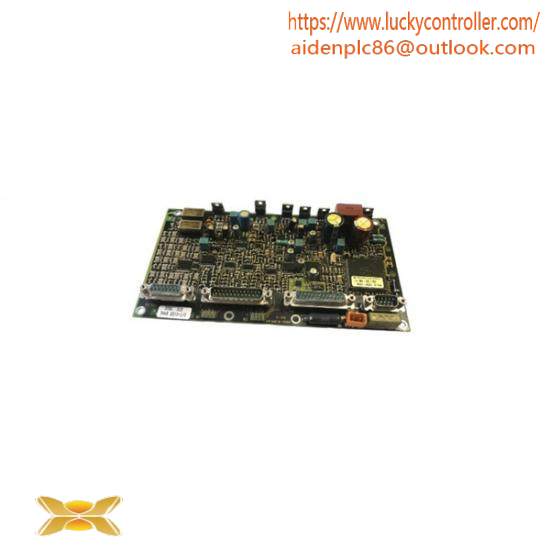

ABB SMB DSQC 313 3HAB2213-1 Measurement Meß Board

Brand:ABB

Model:SMB DSQC 313

Sub-model:3HAB2213-1

Module Category:Measurement Board

Input Voltage:8…40V DC

Output Voltage:±10V

Analog Channels:16

Digital Channels:8

Sampling Rate:1 kHz

Resolution:12 bits

Communication Protocol:DeviceNet

Operating Temperature:-20°C…+60°C

Storage Temperature:-40°C…+85°C

    The ABB SMB DSQC 313 – 3HAB2213-1 Measurement Board is designed to enhance efficiency and accuracy in industrial automation environments. This cutting-edge component boasts high-resolution analog inputs and precise digital outputs, making it ideal for complex measurement tasks in various industries.

    Featuring advanced DeviceNet communication, this board seamlessly integrates into existing control systems, facilitating real-time data exchange and enabling seamless coordination among different devices. Its robust construction ensures reliable performance across a wide temperature range, from -20°C to +60°C, making it suitable for demanding industrial settings.

    With its 16 analog channels and 8 digital channels, the DSQC 313 provides ample connectivity options for a variety of sensors and actuators. The high-speed sampling rate of 1 kHz ensures quick and accurate data acquisition, which is crucial for dynamic process control.

    The board supports a versatile voltage range of 8…40V DC for power supply, ensuring compatibility with a wide array of industrial systems. Additionally, its ±10V output range offers flexibility in configuring measurement scales according to specific application requirements.

    Manufactured by ABB, a leading name in the field of automation technology, the DSQC 313 – 3HAB2213-1 Measurement Board benefits from unparalleled engineering expertise and quality assurance. It is an indispensable addition to any control system aiming to optimize production processes, enhance operational efficiency, and achieve higher levels of precision in measurement tasks.
