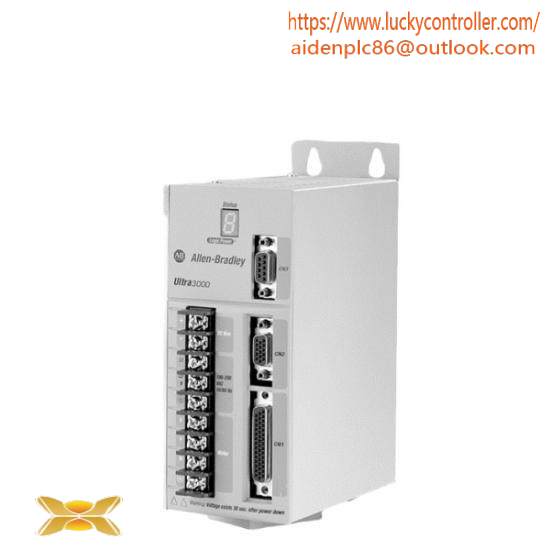

Allen-Bradley 2098-DSD-020X Digital Servo Drive

Operating Temperature Range:-40°C to 158°F

Relative Humidity Limit:5-95% without condensation

Power Dissipation:50W

Velocity Regulator Type:PID with 250 µs update rate

PID Control:Digital PID with feed-forward capability

Input Voltage Range:120-240Vrms, 1-Phase

Bus Overvoltage Protection:400V DC

Dimensions:198.12 x 144.27 x 98.1 mm

Fuse Rating:Class J LPJ-20SP and Class CC FNQ-R-20

Output Power:2KW

Energy Absorption Capability:51 Joules

Auxiliary Logic Supply:5V

Input Signal Frequency:Up to 2.5MHz

Input Types:Selectable differential, single-ended, open collector

    The Allen-Bradley 2098-DSD-020X is a state-of-the-art digital servo drive engineered for unparalleled performance in heavy-duty industrial settings. With a versatile design, this drive effortlessly handles a wide range of servomotor integration, ensuring precise motion control in your automation projects.

    Featuring a robust Proportional+Integral+Derivative (PID) velocity regulator with a high update rate of 250 µs, the 2098-DSD-020X delivers unmatched speed and accuracy. Its Digital PID with feed-forward capability further enhances positioning capabilities, making it ideal for complex applications requiring high precision.

    Equipped with 8 optically-isolated digital inputs and 4 optically-isolated N.O. relay outputs, the drive provides a comprehensive control solution. The relay outputs can handle up to 30V DC with a maximum current of 1A, offering flexibility in connecting various peripherals.

    The 2098-DSD-020X is built to withstand rigorous industrial environments, boasting an impressive working temperature range of 40-70°C and a relative humidity limit of 5-95% without condensation. This ensures reliable operation even in challenging conditions.

    For added safety and efficiency, the drive is equipped with (LPJ-20SP) Class J and (FNQ-R-20) Class CC fuses, along with a 5V Auxiliary Logic supply. Its energy absorption capability of 51 Joules protects against overvoltages, safeguarding your system and ensuring uninterrupted operation.
