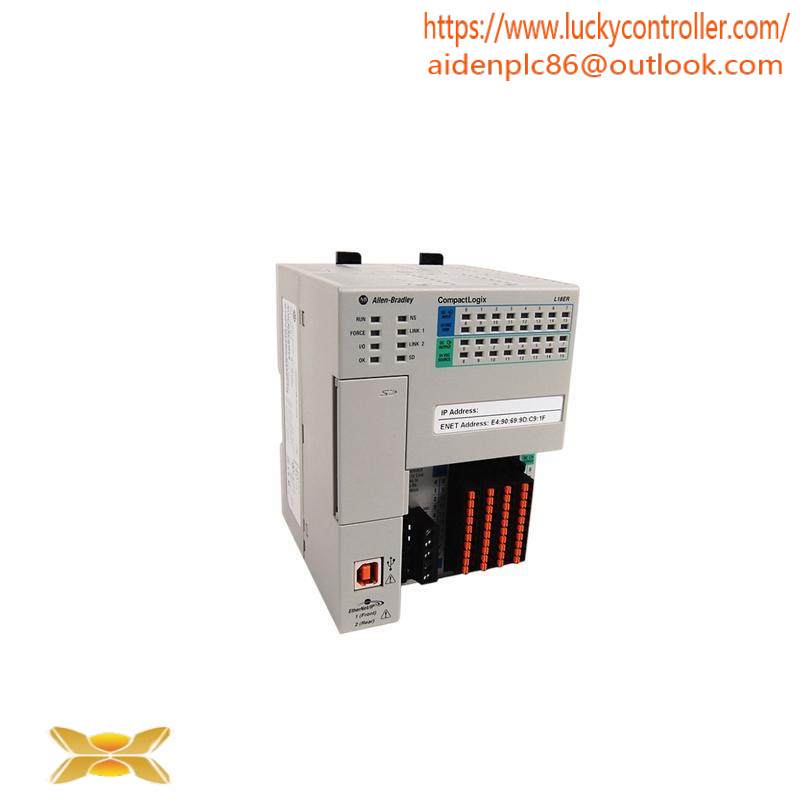

Allen-Bradley AB 1769-L18ERM-BB1B CLASS 2 POWER SUPPLY

Input Voltage:19.2-31.2VDC

Nominal Input Voltage:24VDC

Power Consumption:100 VA @ 24V DC

Fuse Type:Wickmann 19193-6.3A Littelfuse 021706.3MXP

Mounting:Panel or DIN Rail

Dimensions:118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)

Weight:630 g (1.39 lb)

Memory:0.5MB

Expansion Modules:Up to 8

Bus Backplane:POINT Bus

I/O Inputs:16 DI (sink)

I/O Outputs:16 DO (source)

Ethernet Ports:2 Ethernet

Motion Control Connections:2 axis CIP

Network Connections:Supports Class 1, 3

TCP Connections:8

Servo Drive Connections:2

Operating Temperature:-40°C to +70°C

Storage Temperature:-40°C to +85°C

    Crafted with precision and durability, the Allen-Bradley AB 1769-L18ERM-BB1B CLASS 2 Power Supply ensures reliable operation in challenging industrial environments. This compact unit is specifically designed to meet the stringent requirements of today’s automation systems.

    Featuring a wide input voltage range of 19.2-31.2VDC, it provides robust power delivery even under varying electrical conditions. Its efficient power consumption of 100 VA @ 24V DC ensures minimal energy waste, contributing to cost-effective operations.

    The use of Wickmann 19193-6.3A Littelfuse 021706.3MXP fuse offers an additional layer of safety, protecting against potential overcurrent scenarios. This unit is compatible with panel or DIN rail mounting options, offering flexibility in installation.

    Compact yet powerful, the Allen-Bradley AB 1769-L18ERM-BB1B measures 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) and weighs only 630 g (1.39 lb), making it easy to integrate into existing systems without compromising on space.

    Equipped with essential features like fuse protection, versatile mounting options, and precise dimensions, this power supply is engineered to enhance the performance and longevity of your industrial automation systems, ensuring seamless integration and optimal functionality.
