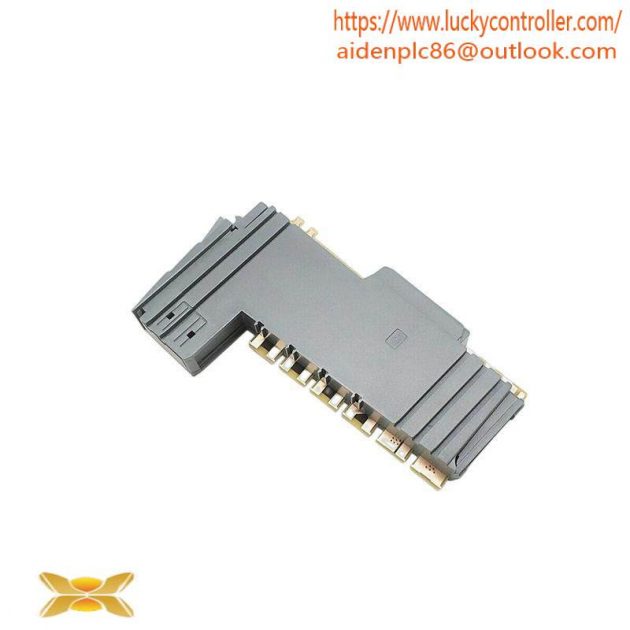

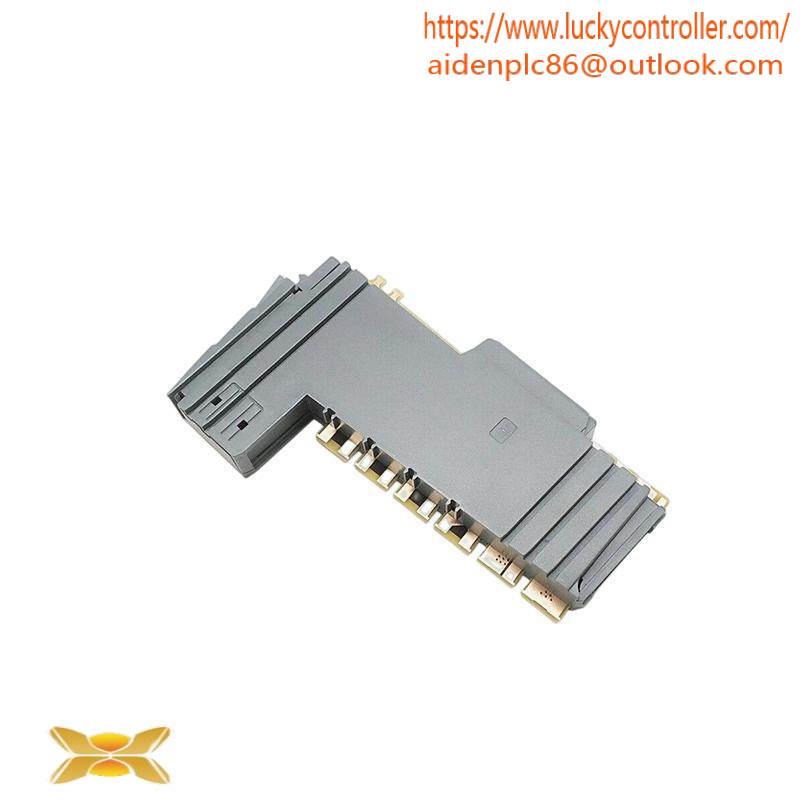

B&R X20BT9100 LINK BUS TRANSMITTER – Advanced System Expansion Solution

Extended Product Type:Other

Product ID:X20BT9100

B&R Type Designation:Other

Product Function:X2X Link bus transmitter

Purpose:For seamless expansion of the system

Maximum Segment Length:Up to 100 m

I/O Supply:Feed for internal I/O

X2X Link Supply:Integrated for the X67 system

Operation:Operation only on the slot to the far right

Power Consumption:Bus: 0.5 W

Input Voltage Range:24 VDC -15% / +20%

Input Current:Max. 0.5 A

Nominal Output Voltage:24 VDC

Permissible Contact Load:10 A

    Engineered with precision, the B&R X20BT9100 LINK BUS TRANSMITTER ensures smooth system expansion by facilitating data flow across up to 100-meter segments, enhancing operational efficiency in extensive industrial setups.

    This robust component operates exclusively in the rightmost slot, ensuring optimal performance and compatibility with existing system configurations. Its design emphasizes reliability and ease of integration.

    With an input voltage range of 24VDC ±15% / +20%, the X20BT9100 is adaptable to various power sources commonly found in industrial environments. Its low power consumption of 0.5W helps maintain energy efficiency, reducing operational costs.

    Featuring an integrated X2X Link supply for the X67 system, this transmitter streamlines the setup process, eliminating the need for external power supplies. This simplification aids in quick deployment and reduces installation complexities.

    The B&R X20BT9100 is not just a communication tool; it’s a testament to innovation in industrial automation. With its comprehensive feature set and meticulous design, it’s poised to elevate your system’s performance and reliability, setting new benchmarks in efficiency.
