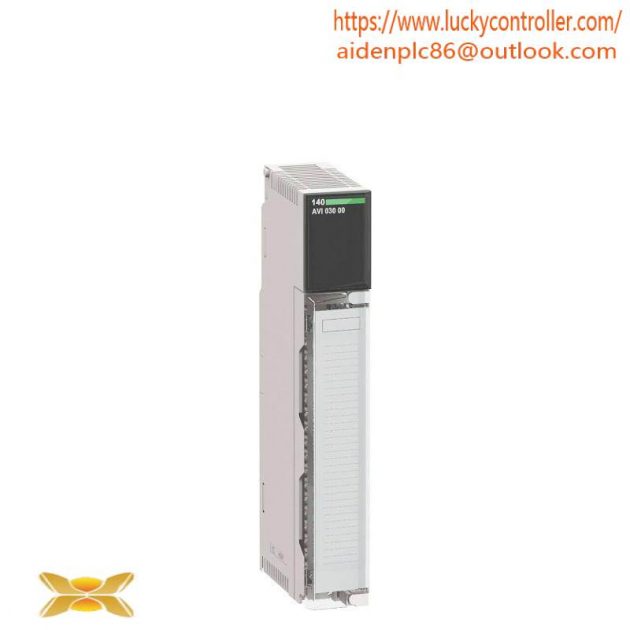

Schneider Quantum-D 140AVI03000 Analog Input Module – 8 Channel Bipolar Multi-Range

Extended Product Type:Module

Product ID:140AVI03000

Type Designation:Module

Number of Channels:8

Input Range:+/-10Vdc / +-5Vdc / 0-10Vdc / 0-5Vdc / 1-5Vdc / +-20mA / 0-20mA / 4-20mA

Resolution:16-bit (inputs)

Power Dissipation:2.2 W

Weight:0.3 kg

Filter Type:Single pole low pass – 3 dB at 847 Hz +/- 20%

    The Schneider Quantum-D 140AVI03000 is a high-performance analog input module ideal for demanding industrial environments. It features 8 channels capable of handling bipolar signals, providing versatility for a wide range of applications. With its 16-bit resolution, this module ensures precise measurements across multiple ranges, including voltage and current inputs. The module comes equipped with a single pole low-pass filter, ensuring signal integrity and stability. Conformal coating adds to its robustness, making it resistant to harsh environmental conditions. Installation is straightforward, allowing for quick integration into existing systems. Designed with ease of use in mind, this module supports efficient data acquisition and control processes, enhancing overall system performance.
