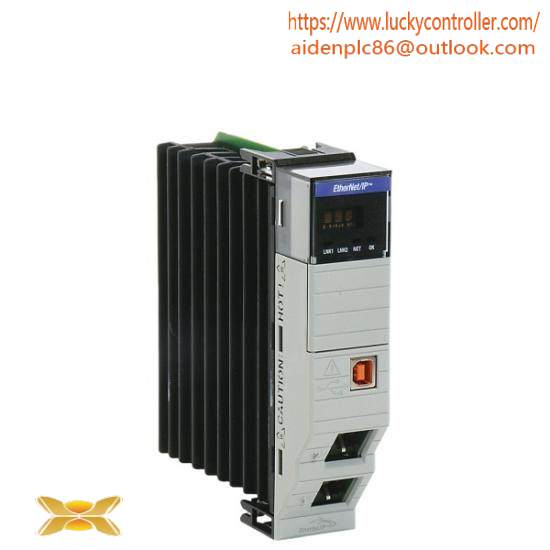

AB 1756-EN2TR – Industrial Communication & Networking Module, Ethernet/IP Bridge, 2 Ports, 8 Motion Axes

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP

Number of Ports:2

Motion Axes Support:Up to 8

TCP/IP Connections:Up to 128

CIP Connections:Up to 256

Enclosure Type:Open Type

Temperature Rating:-20°C to +60°C

Power Supply Voltage:24 VDC

Isolation:30 V DC continuous

Environmental Conditions:5% to 95% non-condensing humidity

Vibration Resistance:2G

Shock Resistance:30G

USB Port:Yes

    The AB 1756-EN2TR is engineered for reliability and performance in demanding industrial settings. Its open-type enclosure ensures optimal heat dissipation and easy access for maintenance.

    Equipped with two Ethernet/IP ports and support for up to eight motion axes, this module enables efficient coordination between various devices, enhancing productivity in multi-machine setups.

    With 128 TCP/IP connections and 256 CIP connections, the 1756-EN2TR provides ample capacity for network traffic, ensuring smooth operation even under high-demand scenarios.

    Adhering to a wide temperature range from 0°C to 60°C, this module is designed for versatility, suitable for various industrial climates. The 3 mA power supply at 24 VDC ensures consistent performance without overheating.

    For user convenience, the 1756-EN2TR features an integrated USB port, allowing for easy firmware updates and data transfer without the need for additional cables. This streamlined approach simplifies system management and maintenance.
