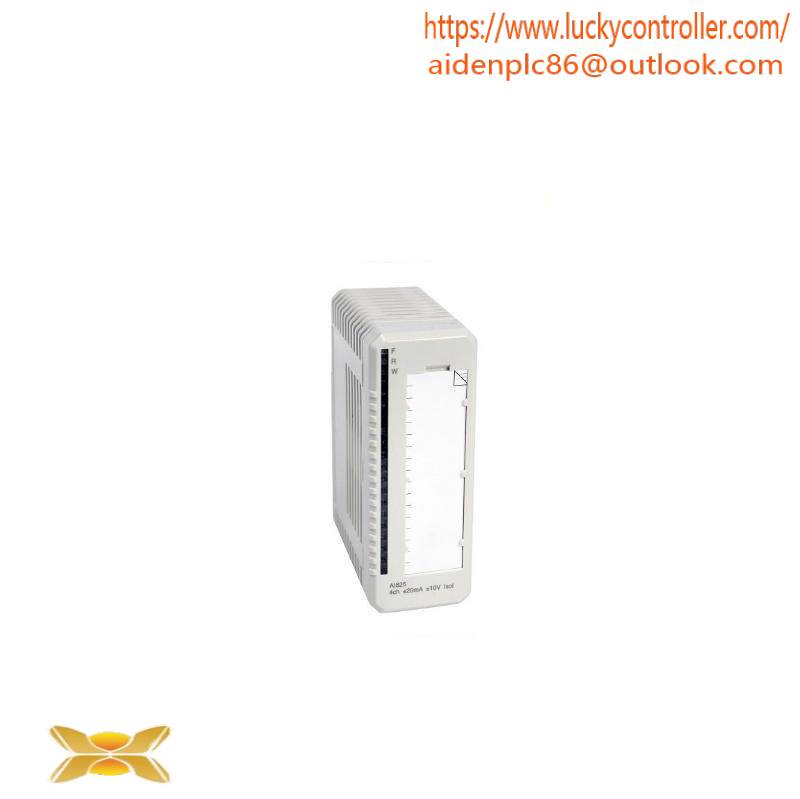

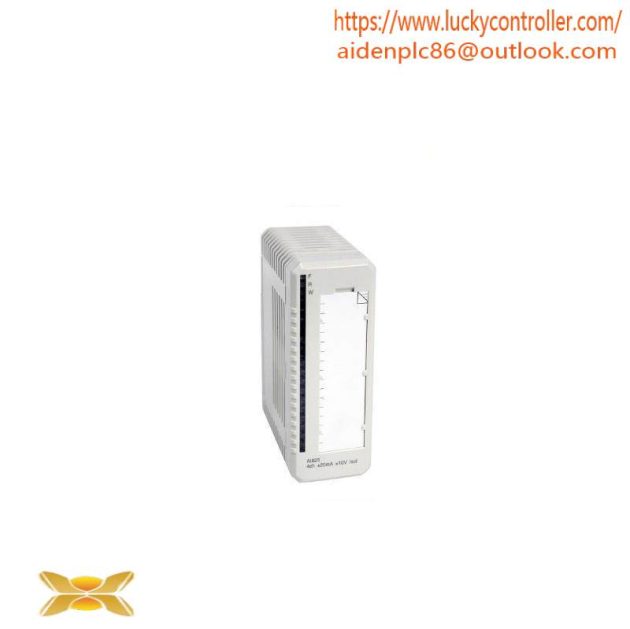

ABB 3BSE036456R1 AI825 – Advanced Analog Input Module for Precision Control

Manufacturer:ABB

Model Number:3BSE036456R1

Module Type:AI825

Input Capacity:16 Channels

Analog Input Range:-10V to +10V

Accuracy:+/-0.05% of Full Scale

Power Supply:12VDC

Communication Interface:Modbus RTU

Operating Temperature:-25°C to +60°C

Environmental Conditions:Humidity: 5 to 95% non-condensing

    The ABB 3BSE036456R1 AI825 Analog Input Module stands out in its ability to deliver precise and reliable analog signal acquisition, crucial for achieving optimal control in demanding industrial environments. Its 8-channel design ensures versatility across various applications, from temperature monitoring to pressure sensing. With a signal range from -10V to +10V, it caters to a wide spectrum of measurement requirements.

    Featuring a high sampling rate of 1 kHz, this module ensures real-time data acquisition, critical for dynamic process control scenarios. It operates efficiently with a power consumption of ≤ 10 mA, making it an energy-efficient choice for industrial automation setups. The module is designed to withstand temperatures ranging from -25°C to +60°C, ensuring reliability in harsh conditions.

    For seamless integration with existing systems, the AI825 Analog Input Module supports Modbus RTU communication protocol. This compatibility facilitates smooth data exchange with other devices in the network, enhancing operational efficiency. Compact in size at 100mm x 100mm x 25mm and lightweight at 0.15kg, it offers ease of installation without compromising on performance.

    Designed with precision and reliability at its core, the ABB 3BSE036456R1 AI825 Analog Input Module is engineered to meet the stringent requirements of modern industrial automation systems. Its robust construction and advanced features make it an indispensable component for achieving accurate control and optimization in diverse industrial processes.

    Experience unparalleled scalability and flexibility with the ABB 3BSE036456R1 AI825 Analog Input Module. Whether you’re upgrading existing systems or integrating into new projects, this module is your trusted partner for achieving superior control performance in your industrial operations.
