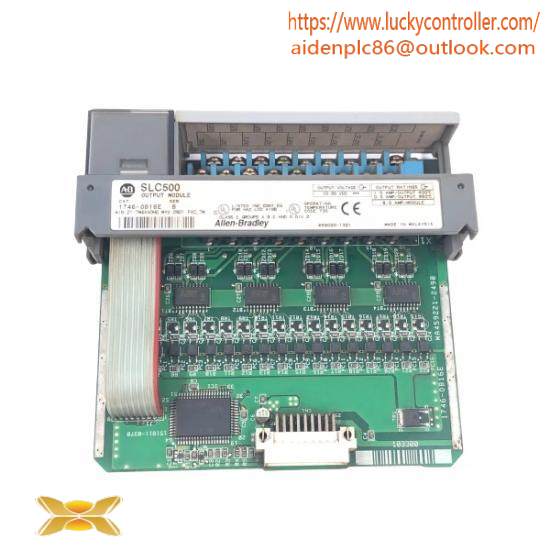

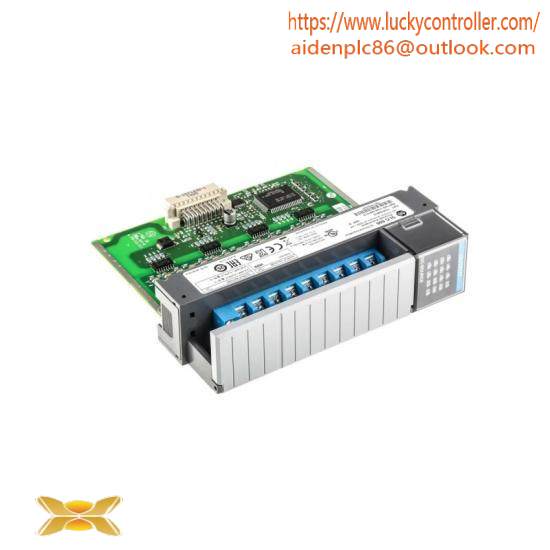

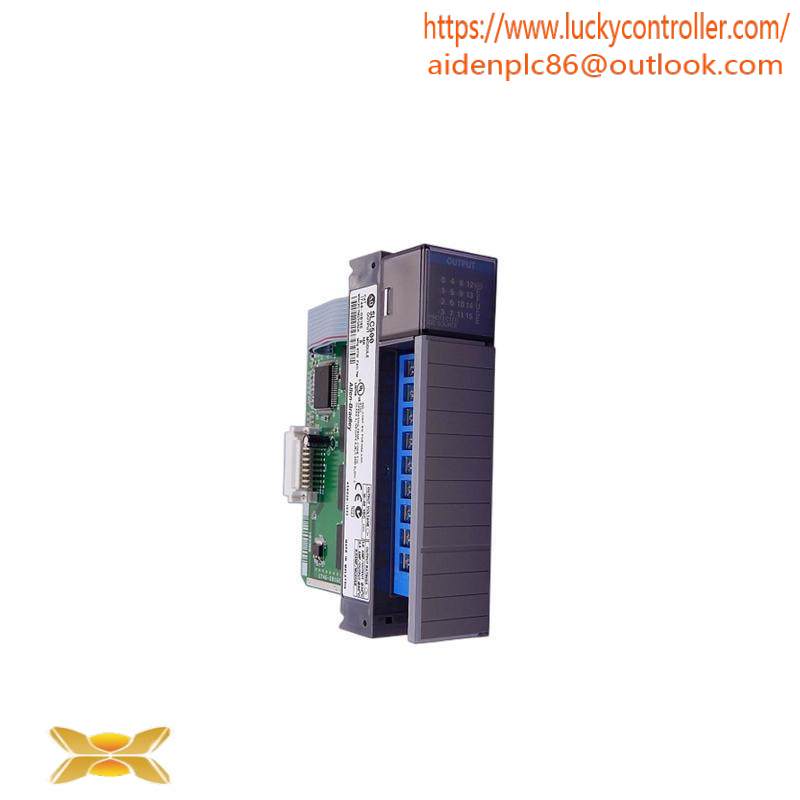

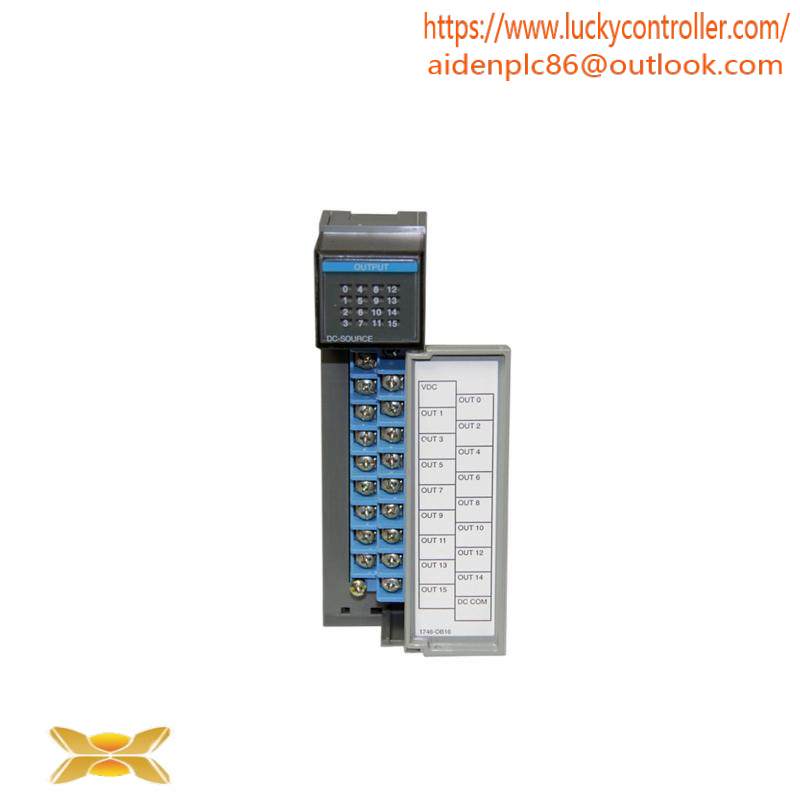

Allen-Bradley 1746-OB16 Digital Output Module

Model Type:SLC500

Model Number:1746-OB16

Manufacturer:Allen Bradley

Number Of Channels:16

Input Voltage:24 VDC

Output Voltage:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A at 60 DEG C”,”Continuous Current Per Module”:”4 A at 60 DEG C”}

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

    The Allen-Bradley 1746-OB16 is an essential component for any industrial control system requiring high-reliability digital outputs. With 16 channels of digital output, this module ensures precise and consistent signal transmission, critical for automation processes. Designed for use with SLC 500 processors, it integrates seamlessly into existing systems, providing a cost-effective solution for industrial automation needs.

    Key Features:

    – Reliable and consistent digital output

    – 16 independent channels

    – Compatible with SLC 500 processors

    – High isolation voltage for improved safety

    – Wide temperature range and environmental conditions

    This module is built to withstand harsh industrial environments, ensuring long-term reliability and performance. Whether you’re upgrading an existing system or building a new one, the Allen-Bradley 1746-OB16 offers robust performance and ease of integration.
