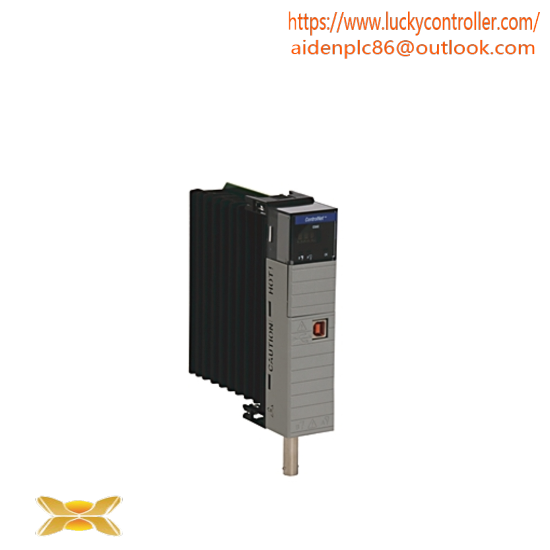

Allen-Bradley 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2R/C

Module Type:ControlNet Redundant Bridge

Channels:Redundant

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Connection:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, Conducted: 10 VRMS with 1 KHz sine-wave 80% AM from 150 kHz – 80 MHz

Temperature Range:0 – 60°C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% non-condensing relative humidity, Vibration: 2 G, Shock: 30 G

Interface:Ethernet, USB Port

    Experience unparalleled reliability and redundancy with the 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module. Designed specifically for industrial control applications, this module ensures robust communication between your ControlLogix controllers and ControlNet networks, making it an indispensable component for mission-critical operations.

    Featuring two channels, this module supports high-speed data transfer rates, enabling smooth operation even in the most demanding environments. Its open-type enclosure ensures easy integration into existing control systems without compromising on performance.

    The module’s isolation technology provides a continuous 30 V level, safeguarding against potential electrical disturbances and ensuring data integrity. It is meticulously tested to withstand extreme environmental conditions, including vibration and shock, guaranteeing dependable operation across various industrial settings.

    With support for ControlNet A/B to backplane and ControlNet A to ControlNet B connections, the 1756-CN2R/C module facilitates seamless network communication, enhancing system efficiency and reducing downtime. Its compatibility with 802.3-compliant shielded or unshielded twisted pair cables ensures flexible installation options.

    Crafted with precision, this Allen-Bradley module is a testament to the company’s commitment to innovation and quality. Its compact design and versatile features make it an ideal choice for upgrading or expanding your existing control systems, driving productivity and efficiency in industrial automation.
