Control Power Nominal:20 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:Approximately 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:Approx. 4.5 kg
Metering Capabilities:Event reports, waveform captures, and startup data logging

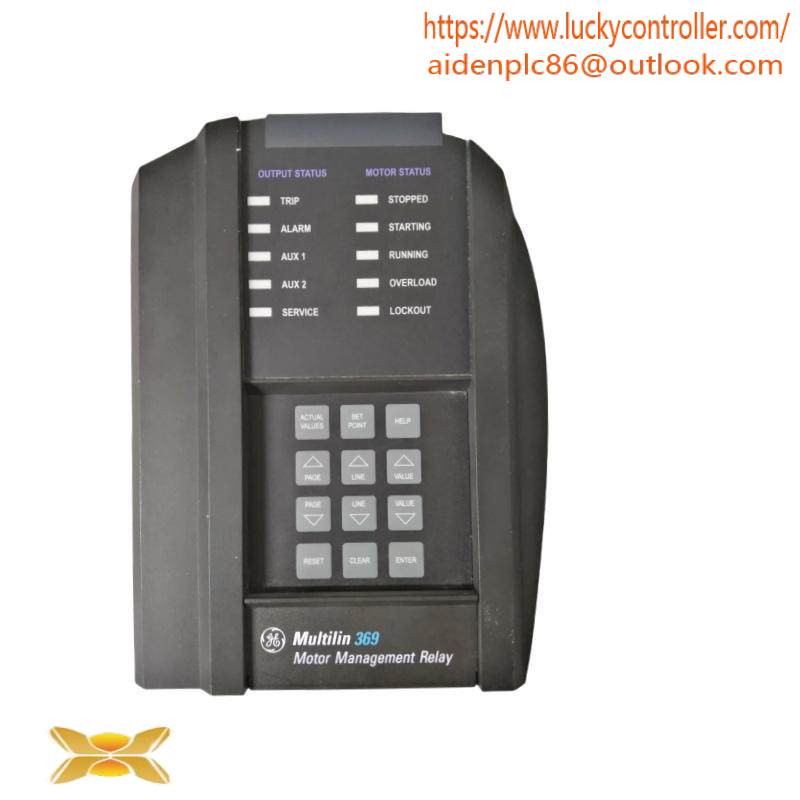

Integrating advanced technology with industrial reliability, the GE 369-HI-R-M-0-0 Motor Management Digital Relay is specifically designed for medium to large motor systems. Its comprehensive feature set includes waveform capture, event reporting, and data logging, enabling proactive monitoring and predictive maintenance.
With twelve RTD inputs, this relay model provides unparalleled insight into motor system performance, facilitating early detection of potential issues before they escalate into costly breakdowns. Its versatile design ensures compatibility with a wide range of industrial applications, enhancing operational efficiency across various sectors.
Featuring true RMS phase current input conversion with a sampling rate of 1.04 ms, the relay ensures precise and accurate readings, crucial for maintaining optimal motor performance. The inclusion of ground current input frequency and insulation class I specifications further bolsters its robustness against electrical disturbances.
The GE 369-HI-R-M-0-0 is equipped with twelve built-in RTD ports, enabling detailed monitoring of ambient conditions, including temperature fluctuations. This feature is particularly beneficial in environments where temperature variations can significantly impact motor operation.
Lightweight and compact, the relay offers ease of installation and integration into existing industrial setups without compromising on performance or functionality. It is an indispensable component for modern industrial control systems, promising reliability, efficiency, and cost-effectiveness.
