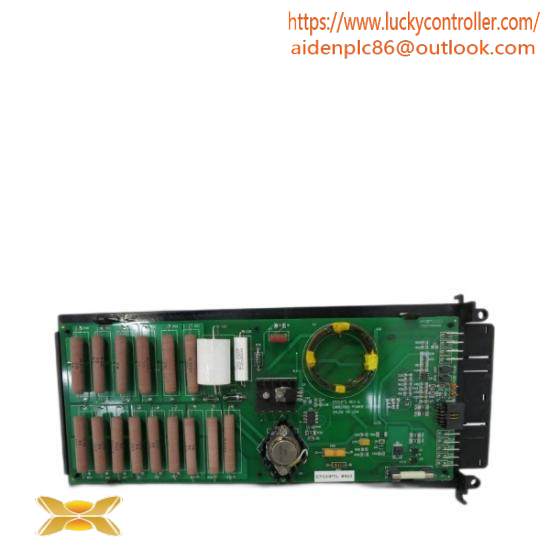

GE DS3800HPTK – Gate Driver Card for Mark IV Speedtronic Series

Model Number:DS3800HPTK1H1K

Category:GE Boards & Turbine Control

Subcategory:Mark IV DS3800

Function:Gate Driver

Resistors:[{“Type”:”Long Grey”,”Resistance”:”18 Ohms ±5%”,”Power Rating”:”10 Watts”},{“Type”:”Color Banded”,”Current Capacity”:”Varies”}]

Diodes:13 various colored

Capacitors:[“Small”,”Very Large”]

Fuse:Large Glass

LED:Red

Potentiometer:Small Blue Variable Resistor

    Engineered for reliability and performance, the DS3800HPTK GATE DRIVER CARD ensures seamless integration into industrial control systems, enhancing operational efficiency.

    With its robust design featuring high-rated resistors, capacitors, and fuses, this card withstands the rigors of continuous industrial use, guaranteeing dependable performance.

    The inclusion of thirteen diodes facilitates the precise modulation of power flow, optimizing energy usage and minimizing waste.

    Ease of installation is enhanced by its clear labeling system and the presence of screw points and plastic clips, making setup quick and straightforward.

    Equipped with a small red LED, the DS3800HPTK provides immediate visual feedback on the status of the turbine control system, enabling prompt troubleshooting and maintenance.
