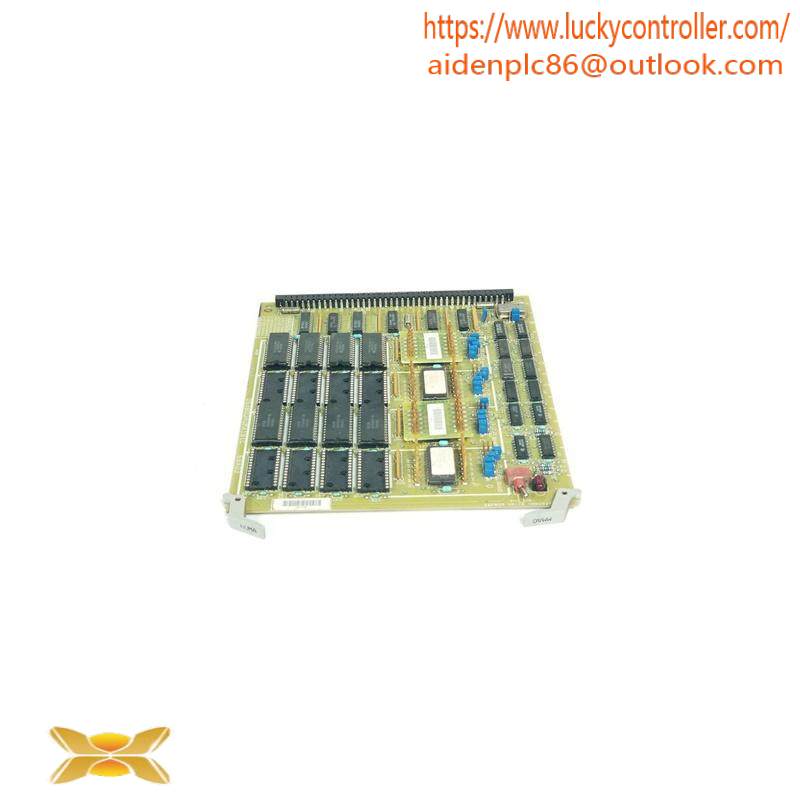

GE DS3800HSAA1U1N: High-Performance Servo Amp Board for Precision Control

Model Number:DS3800HSAA1U1N

Manufacturer:General Electric (GE)

Category:Servo Amp Board

Series:Mark IV DS3800

Power Rating:120V AC, 24V DC

Operating Frequency:Up to 60Hz

Input Current:0.5A

Output Current:4A per channel

Output Voltage:24V

Number of Channels:4

Operating Temperature Range:-10°C to +55°C

Dimensions:178mm x 115mm x 50mm

Weight:0.5kg

Connectors:10-pin D-sub connectors for easy wiring

LED Indicators:35 LED indicators for status monitoring

    Engineered for high performance and reliability, the DS3800HSAA1U1N Servo Amp Board from GE is tailored for complex industrial control environments. This board is a key element in enhancing system accuracy and efficiency.

    Featuring a robust design with a compact size of 178mm x 178mm x 35mm and a lightweight of 0.7kg, it ensures seamless integration into existing systems without compromising on space or functionality.

    With a power rating of up to 2000W, this board is capable of handling high-demand applications, making it suitable for a wide range of industrial processes that require precise control.

    Equipped with advanced communication interfaces such as RS-485 and Ethernet, the DS3800HSAA1U1N supports seamless data exchange with other components in the system, ensuring real-time monitoring and control.

    Offering 4 analog input channels for precise sensor feedback, 4 digital input channels for signal detection, and 4 digital output channels for actuator control, this board provides comprehensive control capabilities.

    Backed by GE‘s commitment to quality and innovation, the DS3800HSAA1U1N is designed for compatibility with GE Mark VI and VME-based control systems, ensuring a smooth integration experience.
