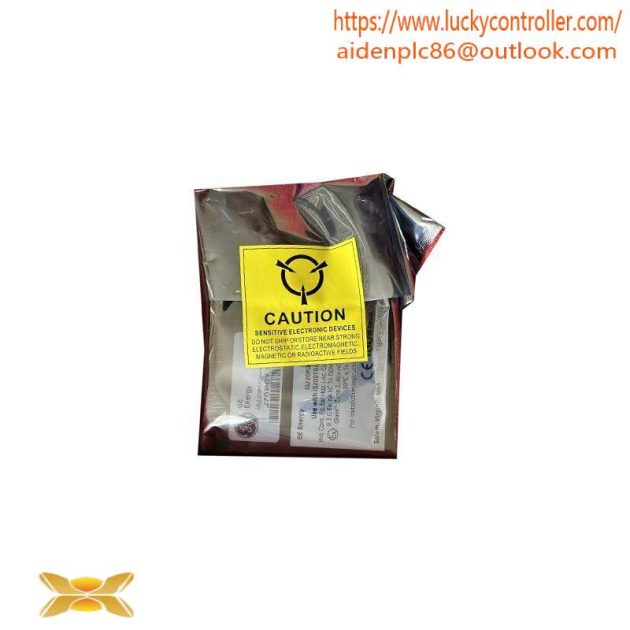

GE IS220PDOAH1A REV D – Discrete Output Terminal Boards, Compatible with Six I/O Networks

Compatible Discrete Output Terminal Boards:Up to six discrete output terminal boards including SRLY and TRLY connectors

Connectors:3 DC connector, 1 DC connector, 2 RJ45 connectors

Dimensions:3.25″ high x 1.65″ wide x 4.78″ deep

Memory Types:Flash and RAM

Ethernet Ports:Two

LEDs:Four – Power, Attention, TxRx, and Link

Power Management:28 V Input

Relay Channels:Quantity 12

Technology:Surface-Mount

    The GE IS220PDOAH1A REV D is a high-performance discrete output terminal board specifically engineered for seamless integration with six distinct I/O networks, ensuring robust connectivity and enhanced operational efficiency in complex industrial automation systems.

    Featuring up to twelve discrete output channels, this board offers unparalleled flexibility in managing various control tasks across multiple systems, making it an indispensable component in environments requiring precise and reliable signal transmission.

    With dimensions measuring 3.25″ in height, 1.65″ in width, and 4.78″ in depth, the board is compact yet powerful, allowing for efficient installation in a variety of industrial settings without compromising on functionality.

    Equipped with a 28V power supply, this board ensures stable operation under varying environmental conditions, ensuring reliability and longevity in diverse industrial applications.

    Incorporating Flash and RAM memory types, the IS220PDOAH1A REV D provides ample storage capacity for firmware updates and temporary data processing, enhancing its adaptability to evolving industrial standards and requirements.

    Two Ethernet ports facilitate high-speed data communication, enabling smooth integration with networked systems. Enhanced by four LED indicators (Power, Attention, TxRx, Link), the board offers intuitive status monitoring, ensuring quick identification of operational statuses and potential issues.
