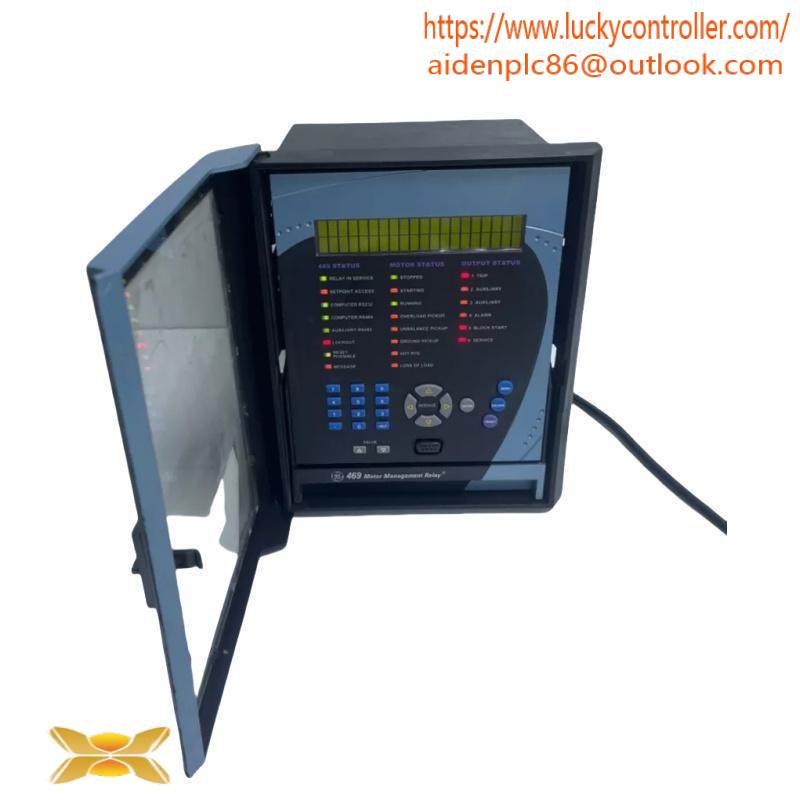

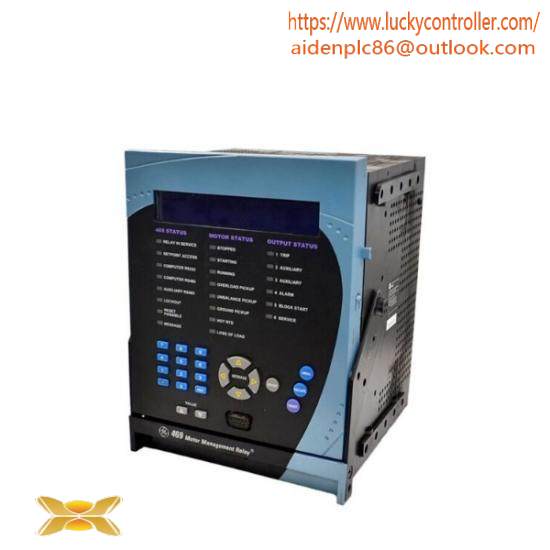

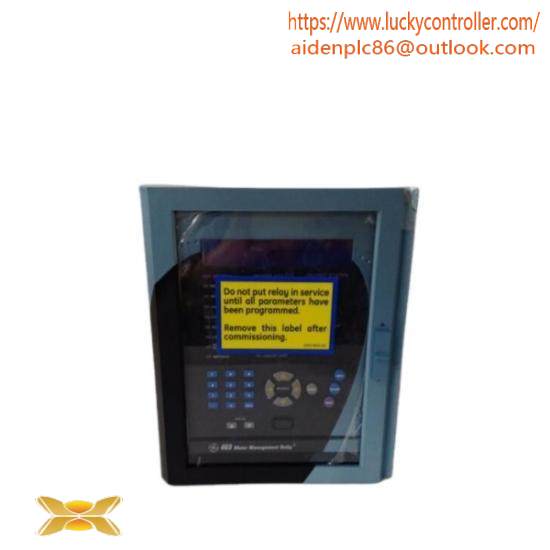

GE SR469-P5-HI-A20 – Advanced Motor Management Relay for Industrial Control Systems

Manufacturer:General Electric

Model Number:469-P5-HI-A20

Power Range:90 to 300 VDC or 70 to 265 VAC

Frequency Range:48-62 Hz

Phase CT Rating:5A

Analog Outputs:4

RTD Inputs:Multiple (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Current Rating:390/500 mA (MAX)

Line Voltage:90-300VDC, 70-265VAC

Enclosure Rating:20-X

Pollution Degree:2

Overvoltage Category:II

Insulation Voltage:300 V

Ethernet Port:10Base-T

Number of Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)

Software:EnerVista 469 Setup

Weight Before Packaging:Less than 15 lbs

    The GE SR469-P5-HI-A20 is a cutting-edge motor management relay designed specifically for industrial applications where precision and reliability are paramount. With its advanced RTD inputs, it accurately measures motor temperatures, ensuring efficient operation and preventing overheating.

    This model features five-phase current transformer secondaries, providing robust protection against overcurrent conditions. Its enhanced front panel offers intuitive controls, making it easy to monitor and adjust settings on the go.

    Built for durability, the GE SR469-P5-HI-A20 comes with conformal coating, which protects internal components from harsh chemical environments. This ensures long-lasting performance even under challenging conditions.

    Equipped with four analog outputs, this relay seamlessly integrates with various control systems, enhancing overall efficiency and data accuracy. The RS232, RS485, and Aux RS485 ports allow for flexible connectivity options, making it ideal for modern industrial setups.

    With its comprehensive software suite, including the EnerVista 469 Setup, users can easily configure and manage the relay’s functions, optimizing motor performance and extending equipment life.
