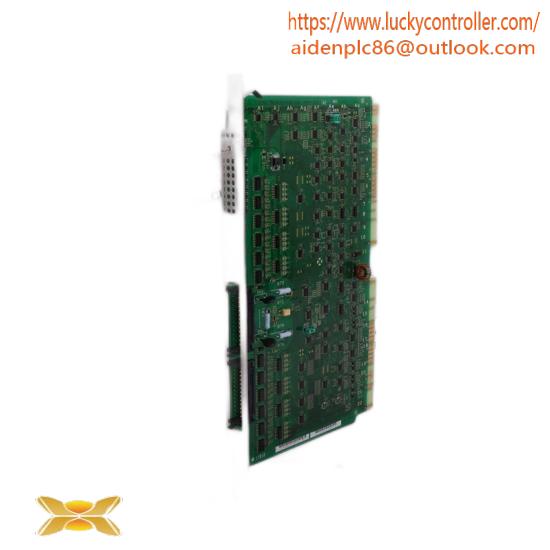

HITACHI XCU232H – High Speed Counter Input Module for Industrial Automation

Operating Frequency Range:Up to 1 MHz

Counting Capacity:Over 1 billion counts

Input Voltage:10-30 VDC

Power Consumption:Less than 50 mA at nominal conditions

Environmental Conditions:Operating temperature: -20°C to 70°C, storage temperature: -40°C to 85°C

Dimensions:24mm x 24mm x 8mm

Connection Type:M8 connector

Accuracy:±0.01% ±2 counts

    The HITACHI XCU232H is engineered with robust circuitry and advanced signal processing algorithms to deliver unparalleled performance in high-speed counting tasks. Its compact design ensures seamless integration into existing control systems without compromising on functionality.

    Featuring an operating voltage range of DC 24V, this module is versatile enough to withstand various industrial environments. It is capable of processing signals up to 1 MHz, making it suitable for applications requiring real-time monitoring and control over high-frequency events.

    With a maximum count capacity of 2^32 – 1, the XCU232H provides ample memory to track extensive data sequences. Its EMC-compliant digital pulse inputs ensure interference-free operation, enhancing reliability in noisy industrial settings.

    For communication and data exchange, the module supports the Modbus RTU protocol via an RS-485 interface, facilitating seamless integration with other devices and systems. This allows for efficient data transmission and control over distributed networks.

    Designed to operate within a wide temperature range from -20°C to +55°C during operation, and from -40°C to +85°C during storage, the XCU232H ensures durability and reliability across diverse industrial environments. Its rugged construction and high-quality materials guarantee long-lasting performance, even under harsh conditions.
