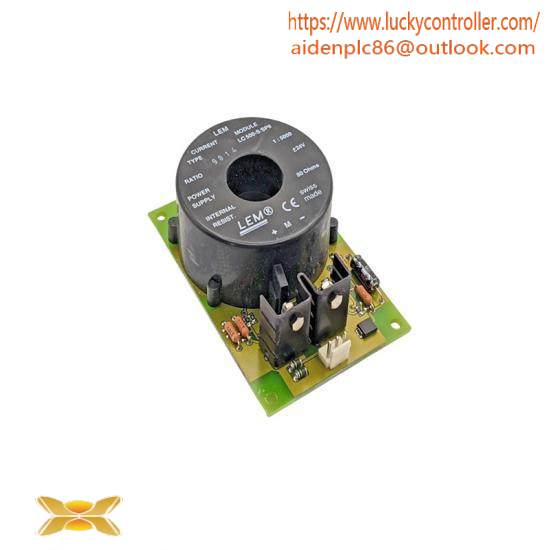

LEM LC1000-S/SP7 – High Precision Current Sensor Module

Manufacturer:LEM

Model:LC1000-S/SP7

Sensor Type:Hall Effect

Measurement Range:±1000 A

Accuracy:±0.3% of Reading ±2 µA

Response Time:<1 µs

Operating Temperature Range:-40°C to +85°C

Supply Voltage:5 VDC

Output Type:Analog Output

Output Impedance:Max 50 Ohms

Insulation Voltage:≥4 kV DC

    The LEM LC1000-S/SP7 is a cutting-edge current sensor designed to deliver unparalleled accuracy and reliability. Its robust design ensures it can withstand harsh industrial environments, making it ideal for a wide range of applications.

    This sensor offers exceptional sensitivity and precision, with a measurement range up to 1000 A and an accuracy of ±0.5% of reading ±2 μA. This level of accuracy is crucial for ensuring efficient operation and compliance with industry standards.

    With a fast response time of ≤1 ms, the LEM LC1000-S/SP7 can quickly adapt to changing conditions, providing real-time data that is essential for process control and monitoring. Its wide frequency range (DC to 20 kHz) allows it to handle a variety of signals and frequencies.

    Designed for ease of integration, this sensor operates on a simple 10 to 30 V DC power supply and provides an analog output signal, making it compatible with a wide range of industrial control systems. Its compact size (85 mm x 65 mm x 25 mm) and lightweight (0.3 kg) design make it easy to install and integrate into existing systems.

    The LEM LC1000-S/SP7 is built to last, with an operating temperature range from -40°C to +85°C, ensuring it can perform reliably under extreme conditions. Whether you’re in power generation, renewable energy systems, or industrial automation, this sensor offers the precision and performance you need to optimize your operations.
