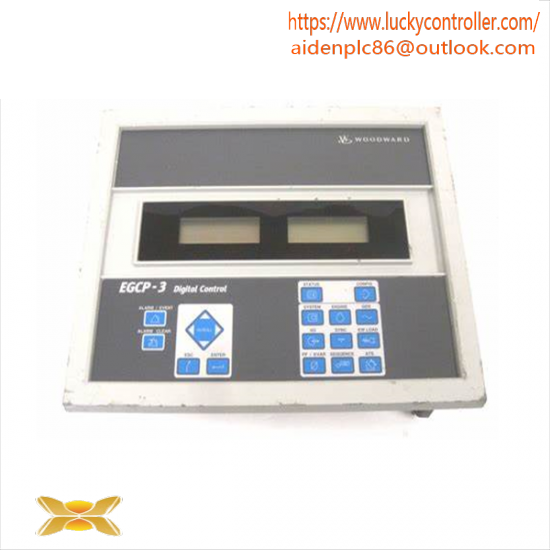

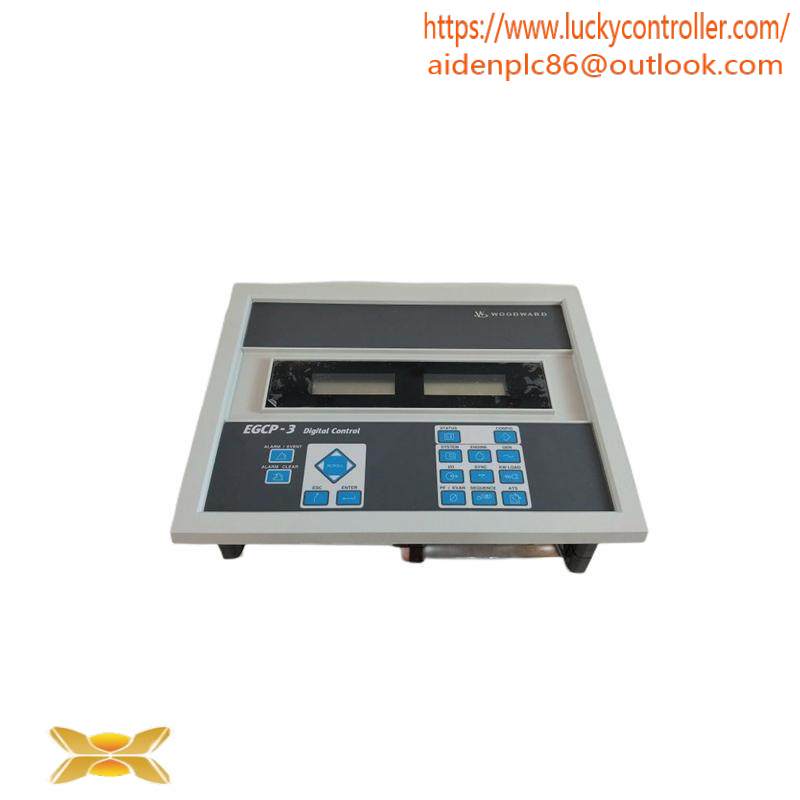

WOODWARD EGCP-3, 8406-113, Engine Generator Control System Module

Dimensions:282H x 359W x 135D mm

Speed Bias Output:4–20 mA, 0–5 V, PWM, or ±3 V

Input Voltage:18-32 V dc

Manufacturer:Woodward

Operating Temperature Range:-20 to +70 °C

Storage Temperature Range:-30 to +80 °C

Weight:4.3 kg (9.5 pounds)

Slot Type:3 Serial Ports

Certification:NEMA 4 when properly installed

    The Woodward 8406-113 is a robust and reliable microprocessor-based control module specifically engineered for managing and coordinating engine generator systems. With its precise speed bias outputs and versatile input voltage range, this module ensures smooth and efficient operation across a wide spectrum of industrial applications. Designed for harsh environments, the 8406-113 boasts a durable construction capable of withstanding temperatures ranging from -30°C to +80°C during storage and -20°C to +70°C during operation. The module supports multiple serial ports and is certified to meet NEMA 4 standards, making it ideal for integration into demanding industrial settings. Its compact design and lightweight frame make installation straightforward, even in tight spaces. Moreover, the 8406-113 facilitates seamless communication with other EGCP-3 controls, enabling coordinated starting and stopping of generator sets and overseeing utility mains paralleling processes. This ensures optimal performance and reliability in critical power generation scenarios.
