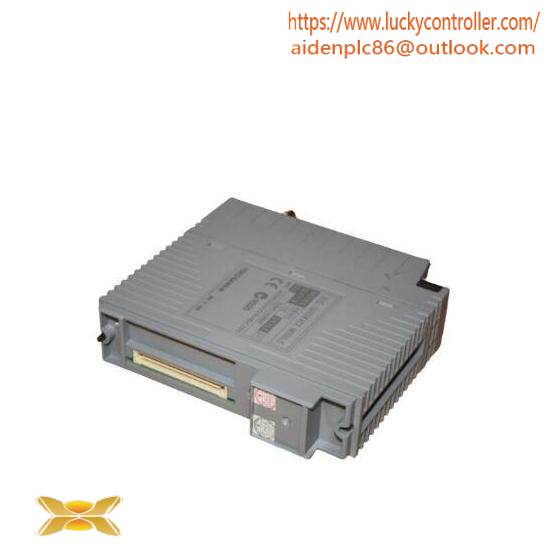

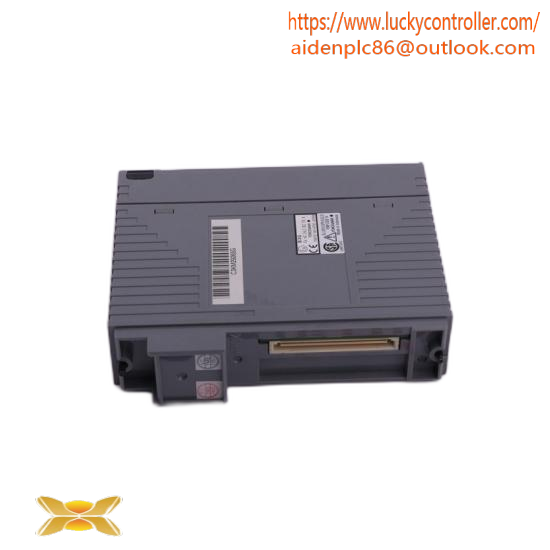

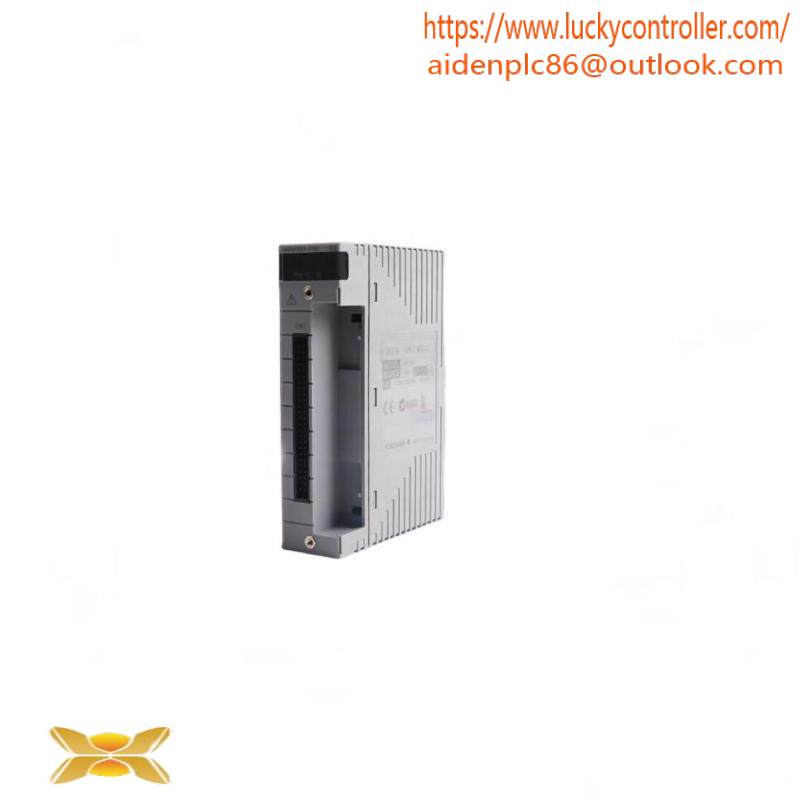

YOKOGAWA F3NC02-0N Positioning Module with Analog Voltage Output

Startup Time:6 ms max.

Control Velocity Output:-10 to 10 V

Data Backup:Backup using the CPU module

External Contact Output:Servo on, driver reset and brake off

Encoder Type:Incremental encoder (phase A/B): Line driver up to 2M pps max./4-time multiplication mode

Control System:Semi-closed loop control (with voltage output for velocity control) based on encoder feedback

    The YOKOGAWA F3NC02-0N Positioning Module is designed for industrial applications that demand precise motion control. With a startup time of just 6 ms, it ensures rapid response and minimal delay. This module supports velocity control outputs ranging from -10 to 10 V, making it suitable for a wide range of speed control scenarios. Additionally, data backup functionality ensures continuous operation even in the event of power interruptions by utilizing the CPU module.

    The external contact output feature allows for seamless integration with servo systems, drivers, and brakes, providing enhanced control over various mechanical components. Featuring an incremental encoder with a maximum pulse rate of 2M pps, this module delivers exceptional precision and reliability. The semi-closed loop control system, based on encoder feedback, ensures accurate and stable performance under varying conditions.

    Moreover, the YOKOGAWA F3NC02-0N is equipped with external contact inputs for limit switches, driver alarms, and home positions, facilitating easy monitoring and maintenance. This module is an essential component for any industrial automation setup, offering unparalleled control and accuracy.
