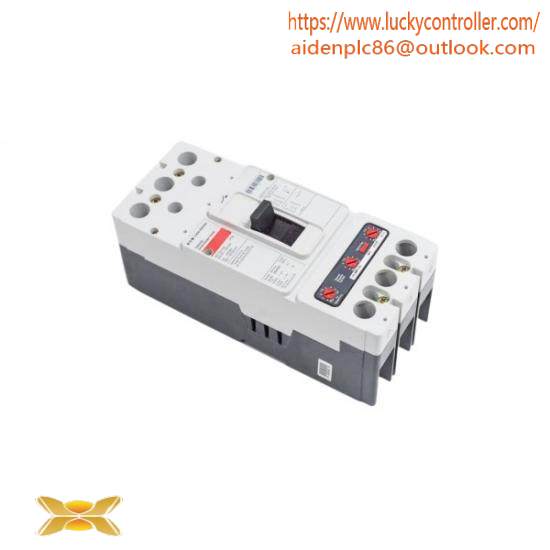

Eaton JD3250D C – Complete Molded Case Circuit Breaker, Advanced Industrial Protection System

Rating Current:3250 A

Voltage Rating:480 V AC

Protection Level:Class C

Operating Temperature Range:-40°C to +70°C

Inlet / Outlet:600 kA at 480 V AC

Number of Poles:3

Operating Mechanism:Electronic

    The Eaton JD3250D C Circuit Breaker is a high-performance solution for industrial control systems, featuring an advanced complete molded case design that ensures superior protection against overcurrent and short circuit faults.

    Engineered with a 600V AC operating voltage, this breaker can withstand demanding electrical loads while maintaining efficiency and reliability. Its impressive current rating of 3250A makes it suitable for large-scale industrial applications requiring substantial power distribution.

    Equipped with a C protection type, it offers precise control over the breaking capacity, enabling effective management of electrical disturbances without compromising system integrity. The breaker is rated for a break capacity of 50kA at 480V AC, ensuring robust protection under severe conditions.

    With an insulation class of H, the Eaton JD3250D C Circuit Breaker demonstrates its ability to handle high temperature environments without degradation. It comes with three poles, facilitating versatile installation options and enhanced control over multiple circuits.

    The manual trip feature allows for easy maintenance and operation, providing operators with direct control over the circuit breaker’s state. The compact size (12 x 14 x 20 inches) and lightweight design (35 lbs) make it ideal for integration into existing industrial setups without requiring extensive space or resources.

    Certified to UL, CE, and ISO 9001 standards, this circuit breaker adheres to stringent quality and safety regulations, ensuring compliance and peace of mind for users across various industries.
